Cutters

ASVC2 VANE CUTTER

Image 2

















The ASVC2 2” Hollow Vane Cutter is a pneumatically powered cutting mechanism that offers a convenient and safe way to cut 2’’ double wall vane. The high cutting force of a single stepped blade rolls the inside edges of the hollow turning vane during cutting. The rolled inside edges provide a more secure and smoother fit when the hollow turning vane is fastened to rail. The elimination of the burrs from tradition chop saws also increases safety in assembly.

The ASV2 has a small footprint yet allows for large lengths of up to 10 ft vane to be cut. It uses a 110 volt power source and a 70 PSI air input so it is easily placed anywhere in a shop.

ASVC2 Lit Sheet >









PLSU2 AUTOMATIC INSULATION CUTTER
For use with 1/2'' to 2'' liner

Image 2

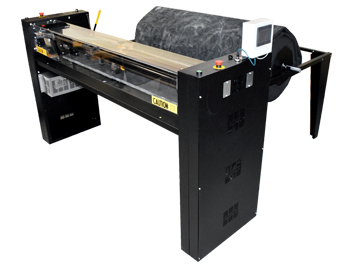

The PLSU2 is the latest in Automatic Liner Sizer cutters for the HVAC Industry. The gear driven slitter and a pulley driven cross cut blade create a powerhouse to tackle all specialty insulations. This new cutting action will allow the PLSU2 to accommodate virtually all insulation types on the market including closed cell products, cotton fiber, Neoprene, Elastomeric Foam & more.

PLSU2 Lit Sheet >
PLSU2 Owner's Manual >
PLSU2 Assembly & Operation Instructions >

LSU LINER SIZER
For use with 1/2'' to 2'' liner

Image 2















The LSU Advanced Liner Sizer will help size and cut duct liner more efficiently than ever thought possible with a hand operated machine. It's enhanced features, make it possible to cut cotton fiber insulations, filter media, rubberized products and other unusual materials. The cross cut and slitter blades are mechanically gear driven to spin while cutting. This spinning action shears the material to create precise cuts in the most difficult of substances.

LS Lit Sheet >
LSU Owner's Manual >





FDC-AB3





























The Duro Dyne Connector Dispenser can relieve many of the difficulties
associated with the handling of flexible connector. Duro Dyne’s Model FDC-AB3 features straightening rollers to combat connector coil set. The FDC-AB3 keeps up to three rolls of flexible duct connector or vane rail within easy reach, anywhere in the shop. Full swivel casters make movement around the shop possible, and ball bearing rollers quickly dispense connector with a simple pull. A foot actuated brake locks the FDC-AB3 in place when dispensing the connector. The shear attachment cuts the duct connector accurately and effortlessly.



FDC-AB3 Lit Sheet >

FDC-AB3 Instructions >

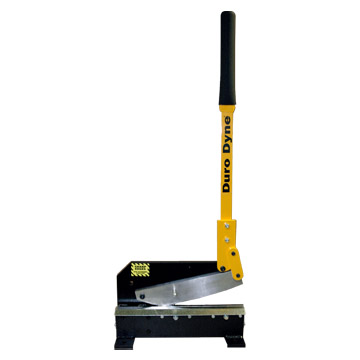

FDCC Shear



















The FDCS-10 Cutting Shear cuts material up to 18 gauge. The Hardened steel blades cut quickly, cleanly and effortlessly. The FDCS-10 can be mounted to any workbench by passing bolts or lag screws through the pre-drilled holes in the feet of the shear. For safety, the FDCS-10 has a safety pin to lock the shear in the open position and hold the 30” long handle upright and out of the way.

FDCS Lit Sheet >















Image 2
Insulation Fastening Product Catalog >
