Durodyne








Flange

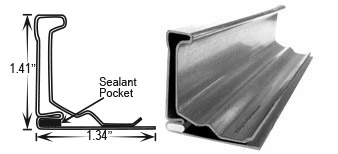

DOMJ Flange

▪ Designed to strengthen the duct wall and connect duct sections together.
▪ Furnished with an integrated sealant pocket for a secure air tight fit.
▪ Manufactured from 20-gauge steel in 10ft., 12ft. & 20ft. lengths.
▪ DOMJ is designed for large commercial and high-pressure applications.
▪ Bundles of 20ft. lengths available only with a Full Truckload order.
▪ Specialty metal available upon request.

Flange Submittal >
Flange Lit Sheet >

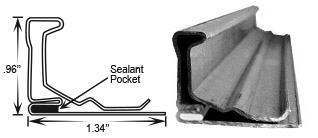

DOMH Flange

▪ Designed to strengthen the duct wall and connect duct sections together.
▪ Furnished with an integrated sealant pocket for a secure air tight fit.
▪ Manufactured from 22-gauge steel in both 12ft. & 20ft. lengths.
▪ DOMH is designed for low to medium pressure or residential
applications.
▪ Bundles of 20ft. lengths available only with a Full Truckload order.
▪ Specialty metal available upon request.

Flange Submittal >
Flange Lit Sheet >



Nosing

▪ Protects exposed edge of the duct liner
▪ Minimizes the possibility of liner delaminating and causing blockage in the ductwork.
▪ Manufactured from 26-gauge galvanized steel.
▪ Designed with self adhesive tape for easy installation.
▪ Available in ½in., 1 in., 1-½in., and 2 in. insulation.
▪ Sold in 10 ft. lengths.
▪ Hemmed to prevent damage to the liner

Image 2

Nosing Submittal >









Image 2
Dyn-O-Mate Product Catalog >

Image 2
Dyn-O-Mate Gauges >




See Our Video
